HSK063A-SX10-105

  • Description: HSK63A SX10 COLLET CHUCK 4.13

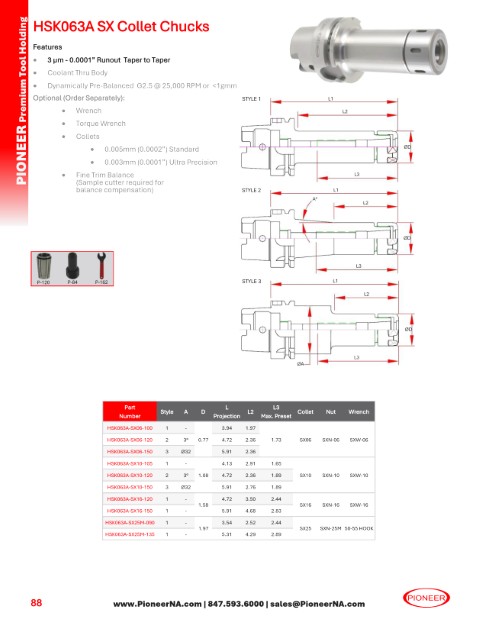

  • Catalog Page: 88
  • List Price: $495.80
  • Inventory Status: Stock
  • Item Weight: 2.2 lbs
Call Out Data
Wrench WRENCH SXW-10 H
Nut NUT SXN-10 H
Misc WRENCH HSK63A COOLNT TUBE
Misc2 TUBE-063A
D1 1.08
L1 4.13
L2 2.91
L3 1.65
Style 1
Drawing .stp STEP

Free 3D STP file viewer for Windows can be downloaded here!


Sorry no Picture at this time

Sorry no Picture at this time
* Actual image of HSK063A-SX10-105 shown above
