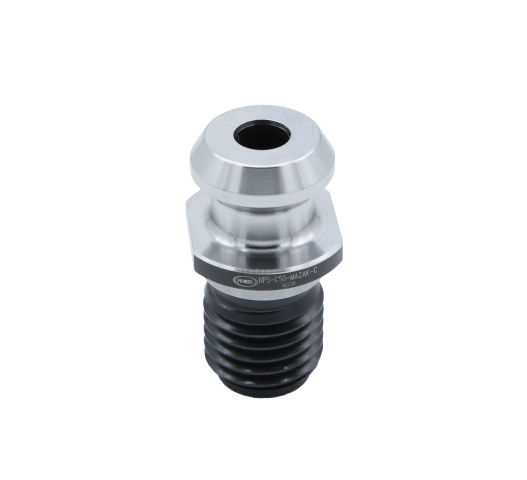

HPS-C50-MAZAK-C
- Description: ANSI B5.50 CAT50 PULL STUD (45 DEG)
- Additional Info: COOLANT MAZAK SPEC GROUND FACE

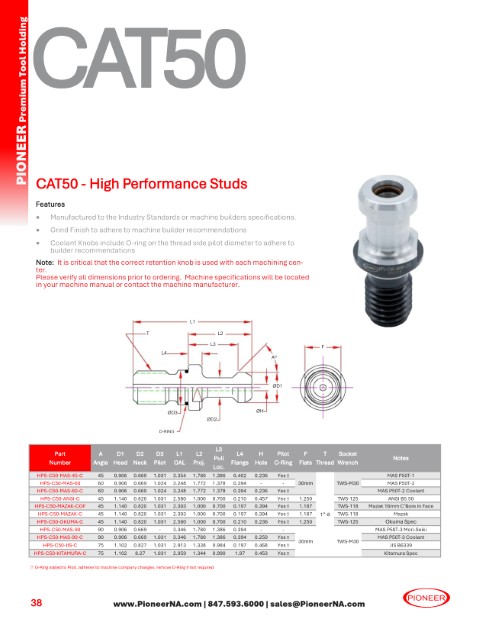

- Catalog Page: 38
- List Price: $36.20
- Inventory Status: Stock
- Item Weight: 0.4 lbs
| Call Out | Data |
|---|---|
| Wrench | TWS-118 |
| Notes | MAZAK |
| A | 45 |
| D1 | 1.14 |
| D2 | 0.82 |
| D3 | 1.031 |
| F | 1.187 |
| H | 0.394 |
| L1 | 2.303 |
| L2 | 1 |
| L3 | 0.7 |
| L4 | 0.197 |
| T | "1""-8" |
| Oring OD | Y |
| Used On | CAT50 |
