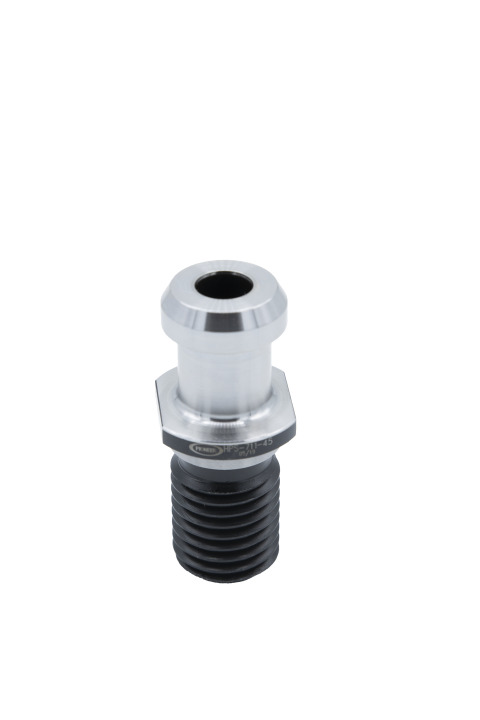

HPS-C50-JIS-C

• Description: JIS B6339 CAT50 PULL STUD (75 DEG)
• Additional Info: COOLANT THRU HPS-711-45
• Catalog Page: 38
• List Price: $36.20
• Inventory Status: Stock
• Item Weight: 0.4 lbs

Call Out	Data
Wrench	TWS-M30
Notes	JIS B6339 HPS-711-45
A	75
D1	1.102
D2	0.827
D3	1.031
F	30
H	0.468
L1	2.913
L2	1.338
L3	0.984
L4	0.197
T	8-Jan
Oring OD	Y
Used On	CAT50
